奥松首发 Arduino UNO WiFi 控制器 ATmega328 ESP8266wifi无线模块开...

来源: 奥松-Phoebe 2016-3-26 08:51 显示全部楼层 |阅读模式
本帖最后由 奥松-Phoebe 于 2016-3-26 08:53 编辑


通知:

      Arduino UNO WiFi集成ESP8266无线模块,官方正品新鲜出炉!稳定性秒杀山寨wifi板!

      首批产品已在回国途中,奥松机器人国内首发!

      到货后按照付款顺序发货,数量不多,先到先得!


产品介绍:

       全新一代Arduino UNO WiFi 在便捷灵活的Arduino UNO控制器基础上新增了wifi模块!处理器采用成熟的ATmega328方案,无线模块选用了脍炙人口的ESP8266。 该控制器包含14个IO端口(6个PWM输出),6个模拟输入端口,一个16 MHz晶体振荡器、一个微型USB连接器,一个电源接口和ICSP接口,以及一个重置按钮。这块板子包含微型控制器所需要的一切功能,您只需一根usb线或者一个直流电源适配器亦或一块电池就可以点亮它并开始您的奇妙之旅!

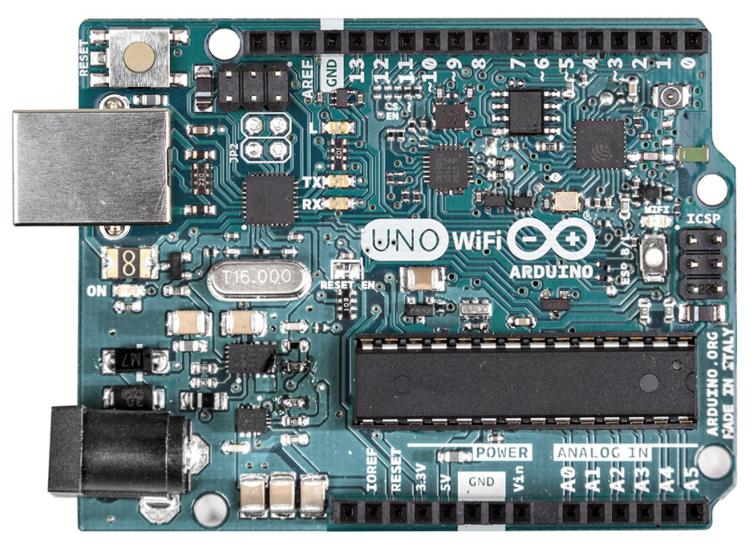

产品图片:

ESP8266无线模块内部集成包含TCP/IP协议的SOC级芯片组,能够让您轻松接入wifi网络中

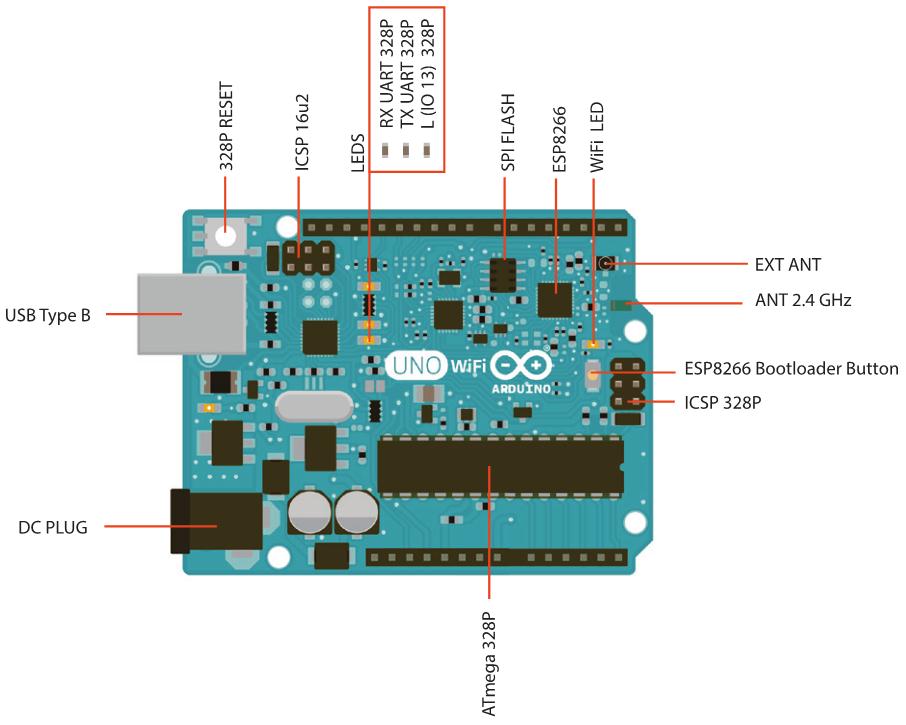

各个引脚定义,标识清晰

保证原装正品 进口产品报关单



产品参数:

  • 1.微控制器核心:ATRmega328
  • 2.工作电压:DC+5V(可USB接口供电)
  • 3.外部输入电压:DC+7V~+12V(建议)
  • 4.外部输入电压(极值):DC+6V≤Vin≤+20V
  • 5.输出电压:DC+5V/+3.3V
  • 6.数字信号I/O接口数:14(其中6个PWM输出接口)
  • 7.模拟信号输入接口数:6
  • 8.I/O接口电流:40mA
  • 9.Flash容量:32KB(其中0.5K用于bootloader)
  • 10.SRAM静态存储容量:2KB
  • 11.EEPROM存储容量:1KB
  • 12.时钟频率:16MHz
  • 13.尺寸大小:68.6mm*53.4mm
  • 14.重量:25g


官方描述:

Description:

The Arduino Uno WiFi is the new Arduino Uno with the WiFi module! The board is based on the ATmega328 and it has integrated the ESP8266 WiFi Module. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The ESP8266 WiFi Module is a self contained SOC with integrated TCP/IP protocol stack that can give access to your WiFi network.


Details:
Microcontroller: ATmega328 Operating Voltage: 5V Input Voltage (recommended): 7-12V Input Voltage (limits): 6-20V Digital I/O Pins: 14 (of which 6 provide PWM output) Analog Input Pins: 6 DC Current per I/O Pin: 40 mA DC Current for 3.3V Pin: 50 mA Flash Memory: 32 KB (ATmega328) of which 0.5 KB used by bootloader SRAM: 2 KB (ATmega328) EEPROM: 1 KB (ATmega328) Clock Speed: 16 MHz Length: 68.6 mm Width: 53.4 mm Weight: 25g

ESP8266 WiFi Module:

802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA 1MB Flash Memory Integrated low power 32-bit CPU could be used as application processor SDIO 1.1 / 2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3)



购买链接:

中文官网:http://alsrobot.cn/goods-742.html

淘宝基地:https://item.taobao.com/item.htm?id=528527403164

中国创客空间联盟:https://item.taobao.com/item.htm?id=528274451082
